Belt conveyors move bulk raw material through steelworks and power plants. Part of the load sticks to the belt surface and is carried past the discharge point, then falls along the return side of the conveyor. The lost material has to be cleared by hand, it fouls idlers and structures, and it scatters as dust.
JangWon SM Co., Ltd. (JWSM) develops and manufactures equipment that solves this at the source: cleaners that detach the adhering material from the return side of the belt, and recovery units that collect the detached material and return it to the process instead of leaving it on the floor. Its four Korean patents, registered between 2007 and 2011, were in this field.
Patents (registered 2007–2011)
| Registration No. | Title | Registered |
|---|---|---|
| KR 10-0748645 | Bulk cargo recovery apparatus | 6 August 2007 |
| KR 10-0859196 | Conveyor belt cleaner | 11 September 2008 |
| KR 10-0893530 | Apparatus for recovering falling bulk cargo and preventing scattering | 8 April 2009 |

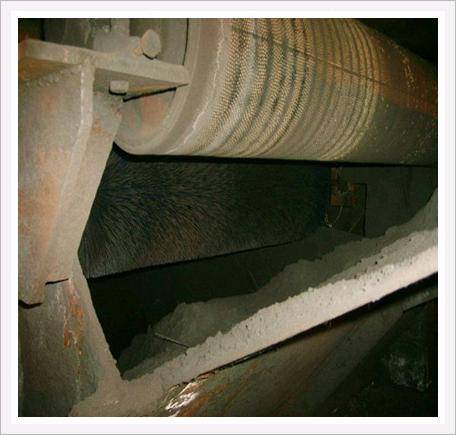

| KR 10-1065043 | Residual cargo recovery apparatus for belt conveyors carrying bulk cargo | 7 September 2011 |
All four were registered in the Republic of Korea between 2007 and 2011.
Development and Supply Record
| Date | Customer / site | Scope |
|---|---|---|
| December 2007 | POSCO, Pohang and Gwangyang works | Development of the belt conveyor falling material recovery apparatus, under a purchase-conditional development program in which the buyer commits in advance to purchase the developed product. |
| June 2008 | POSCO Gwangyang, coke plant | Fabrication and installation of a measuring device for the recovered falling coal, with the Research Institute of Industrial Science and Technology (RIST). |
| June 2008 | POSCO, Pohang and Gwangyang works | Development of the belt conveyor falling material recycling apparatus, as a government-funded project. |
| 2009 | POSCO Gwangyang, coke by-product department | Purchase-conditional development project for the conveyor belt cleaner, supported by the Small and Medium Business Administration (now the Ministry of SMEs and Startups). |

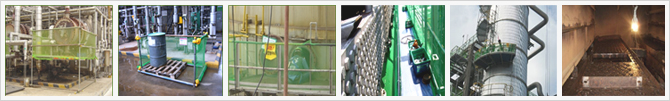

| November 2009 onward | POSCO Gwangyang – coke by-product, sintering and blast furnace plants | Fabrication, installation and after-sales service of belt cleaners. Continuing as of the company’s latest record, June 2022. |
| January 2011 to June 2012 | POSCO Pohang – coke by-product plant | Fabrication, installation and after-sales service of belt cleaners. This work ended in June 2012. |
Where It Is Used
The equipment is designed for plants that handle bulk solids on belt conveyors – iron and steel works and power plants in particular, where coal, coke, ore and sinter are carried continuously and material carry-back is a daily operating problem.
What the Customer Gains
- Material that would fall along the conveyor line is recovered and returned to the process.
- Manual clearing work under and along the conveyor is reduced.
- Scattering of the detached material is contained, which keeps the conveyor gallery cleaner and protects idlers and structures.
- Equipment is supplied with installation and after-sales service. POSCO Gwangyang has been served on this basis from November 2009, continuing as of the company’s latest record (June 2022); POSCO Pohang was served from January 2011 to June 2012.
JWSM designs, manufactures and installs the units itself. For a site survey or an inquiry, please use the contact page.
